Lower Arm A Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheel.
Position a floor jack under the lower arm B. Raise the floor jack until the suspension begins to compress.

Fig 1: Positioning Floor Jack Under Lower Arm B
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the self-locking nut (B), the washer (C), and the flange bolt (D), then remove the lower arm A.
NOTE:
- During installation, position the paint mark (E) on the lower arm A toward outside of the vehicle.
- Use the new self-locking nut and the new flange bolt, during assembly.

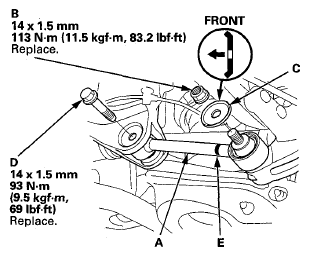

Fig 2: Lower Arm Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the lower arm A in the reverse order of removal, and note these items:
- First install all of the components, and lightly tighten the bolts and nuts, then raise the suspension to load it with the vehicle's weight before fully tightening to the specified torque.
- Before installing the wheel, clean the mating surfaces between the brake disc/drum and the inside of the wheel.
Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
