Exploded View: Notes

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

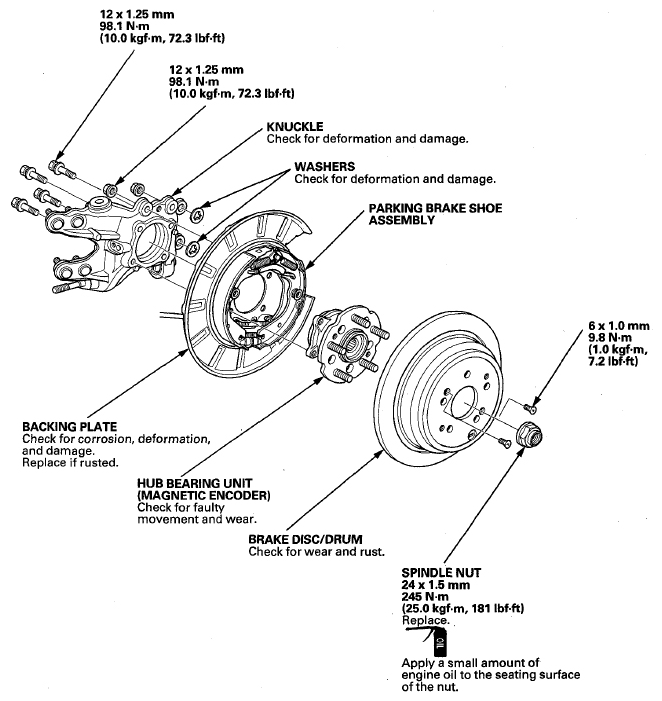

Fig 1: Exploded View Of Knuckle/Hub Bearing Unit
G08065923Courtesy of AMERICAN HONDA MOTOR CO., INC.
