Damper Replacement: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
Remove the rear wheel.
With active damper system: Disconnect the damper coil connector (A).
NOTE: Be careful not to damage or contaminate the damper coil connector.

Fig 1: Identifying Damper Coil Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the flange nut (A) while holding the joint pin (C) with a hex wrench (D), and disconnect the stabilizer link (E) from the lower arm B.

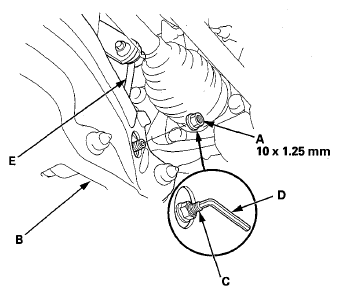

Fig 2: Removing Stabilizer Link Flange Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Position a floor jack under the lower arm B. Raise the floor jack until the suspension begins to compress.

Fig 3: Positioning Floor Jack Under The Lower Arm B
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the flange bolt (A) from the bottom of the damper.
Remove the flange bolt (C) from the knuckle.
Remove the flange bolt (A) from the top of the damper.

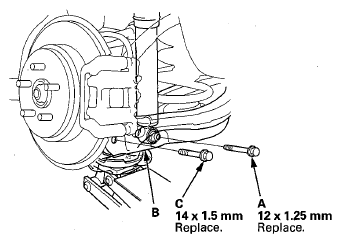

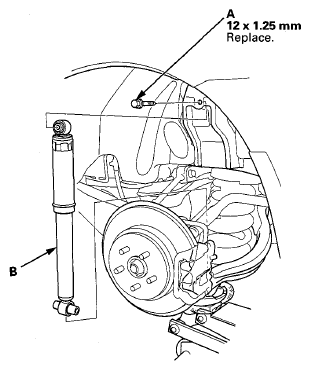

Fig 4: Identifying Flange Bolt And Damper
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the floor jack gradually, then remove the damper (B) from the vehicle.
