Front Bumper Mesh Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

* Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the front bumper.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the screws and detach the hooks (A), then remove the bumper mesh (B).

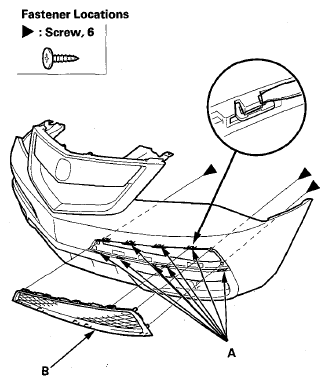

Fig 1: Identifying Bumper Mesh, Hooks And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the bumper mesh in the reverse order of removal, and push the hooks into place securely.
