Shift Lever Housing Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the center console, dashboard, and related parts.

Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

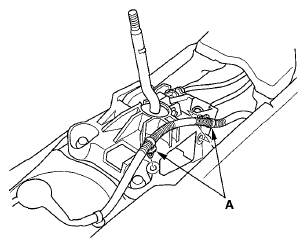

Remove the harness clamps (A).

Fig 1: Identifying Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.

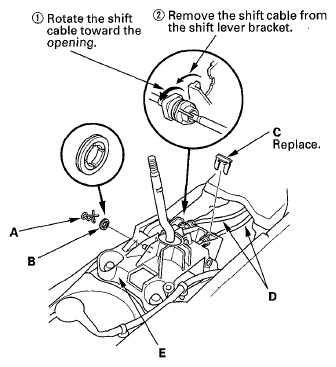

Remove the lock pin (A), the washer (B), the shift cable clip (C), and the shift cables (D) from the shift lever housing assembly (E).

Fig 2: Identifying Lock Pin, Washer, Shift Cable Clip, Shift Cables & Shift Lever Housing Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

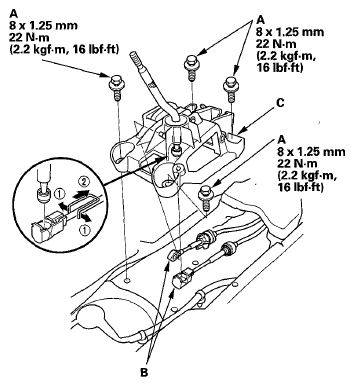

Remove the four bolts (A). Disconnect the shift cables (B) from the shift lever, then remove the shift lever housing (C).

Fig 3: Four Bolts, Shift Cables, Shift Lever And Shift Lever Housing With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the shift lever housing in the reverse order of removal.
