Shift Fork Clearance Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If required, always replace the synchro sleeve and the synchro hub as a set.

Measure the clearance between each shift fork (A) and its matching synchro sleeve (B). If the clearance exceeds the service limit, go to step 2.
Standard: 0.35-0.65 mm (0.014-0.026 in.)

Service Limit: 1.0 mm (0.04 in.)

Fig 1: Measuring Clearance Between Each Shift Fork & Matching Synchro Sleeve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the thickness of the shift fork (A) fingers.
- If the thickness is not within the standard, replace the shift fork.
- If the thickness is within the standard, replace the synchro sleeve and the synchro hub as a set.
- If one arm of the shift fork shows more wear than the other, the fork may be bent and needs to be replaced.
  Standard:

  1st/2nd, 3rd/4th shift forks: 7.4-7.6 mm (0.29-0.30 in.)

  5th shift fork: 6.7-6.9 mm (0.26-0.27 in.)

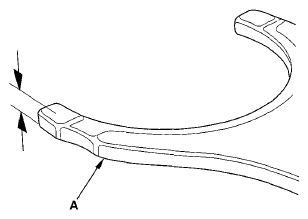

  Fig 2: Identifying Shift Fork Dimension
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the clearance between the shift forks (A) and the shift arm (B). If the clearance exceeds the service limit, go to step 4.
Standard: 0.2-0.5 mm (0.008-0.020 in.)

Service Limit: 0.62 mm (0.024 in.)

Fig 3: Measuring Clearance Between Shift Forks & Shift Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the width of the shift arm (A).
- If the width is not within the standard, replace the shift arm.
- If the width is within the standard, replace the shift fork or the reverse shift piece.
  Standard: 12.9-13.0 mm (0.508-0.512 in.)

  Fig 4: Identifying Shift Arm Width
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
