Reverse Shift Fork Clearance Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Measure the clearance between the reverse idler gear (A) and the reverse shift fork (B) with a feeler gauge (C). If the clearance is more than the service limit, go to step 2.
Standard: 1.30-1.90 mm (0.051-0.075 in.)

Service Limit: 2.5 mm (0.098 in.)

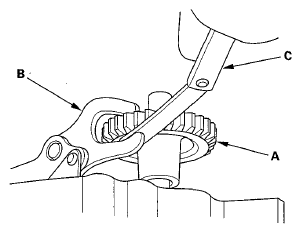

Fig 1: Measuring Clearance Between Reverse Idler Gear And Reverse Shift Fork With Feeler Gauge
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the width of the reverse shift fork.
- If the width is not within the standard, replace the reverse shift fork.
- If the width is within the standard, replace the reverse idle gear.
  Standard: 13.5-13.8 mm (0.53-0.54 in.)

  Fig 2: Identifying Reverse Shift Fork Width
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
