Countershaft Disassembly

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to EXPLODED VIEW in the countershaft reassembly, as needed, when removing components pressed onto the countershaft (see COUNTERSHAFT REASSEMBLY ).

Securely clamp the countershaft assembly in a bench vise with wood blocks.

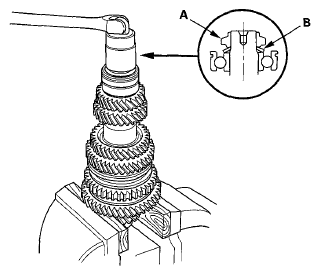

Use a chisel (A) to raise the locknut tab (B) from the groove in the countershaft.

Fig 1: Raising Locknut Tab From Groove In Countershaft With Chisel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the locknut (left-hand threads) (A) and the spring washer (B). 4

Fig 2: Identifying Locknut (Left-Hand Threads) & Spring Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Support 5th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the bearings (F).

Fig 3: Pressing Countershaft Out Of Bearings
Courtesy of AMERICAN HONDA MOTOR CO., INC.

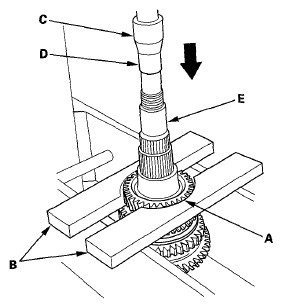

Support 4th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of 4th gear.

Fig 4: Pressing Countershaft Out Of 4th Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

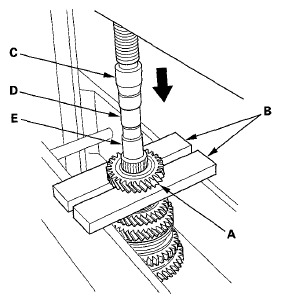

Support 3rd gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of 3rd gear.

Fig 5: Pressing Countershaft Out Of 3rd Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
