Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Driver handle, 15 x 135L 07749-0010000
Attachment, 52 x 55 mm 07746-0010400
Adjustable Bearing Puller, 20-40 mm 07736-A01000B

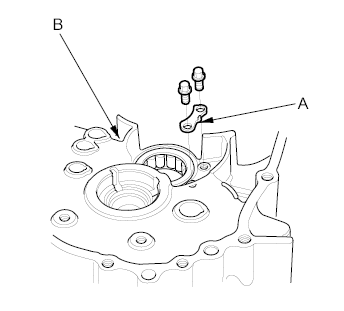

Remove the bearing set plate (A) from the clutch housing (B).

Fig 1: Identifying Bearing Set Plate & Clutch Housing

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Remove the needle bearing (A) using the 20-40 mm adjustable bearing remover head (B) and a commercially available 3/8"-16 UNF slide hammer (D), then remove oil guide plate (C).

Fig 2: Identifying Needle Bearing, Adjustable Bearing Remover Head & Oil Guide Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.

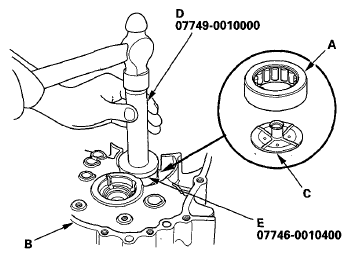

Position the oil guide plate (C) and new needle bearing (A) in the bore of the clutch housing (B).

Fig 3: Identifying Oil Guide Plate, Needle Bearing, Clutch Housing, Driver Handle & Bearing Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Press in the needle bearing using the 15 x 135L driver handle (D) and the 52 x 55 mm bearing driver attachment (E).

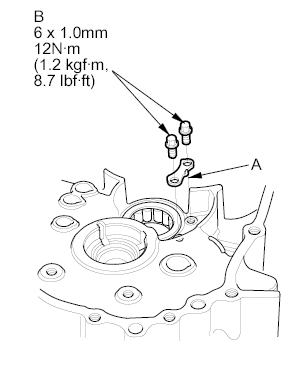

Install the bearing set plate (A) with bolts (B).

Fig 4: Identifying Bearing Set Plate & Bolts

Courtesy of AMERICAN HONDA MOTOR CO., INC.
