Countershaft Assembly Clearance Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Measure the clearance between 1st gear (A) and the distance collar (B) with a feeler gauge (C).
- If the clearance exceeds the service limit, go to step 2.
- If the clearance is within the service limit, go to step 4.
  Standard: 0.03-0.12 mm (0.001-0.005 in.)

  Service Limit: 0.24 mm (0.009 in.)

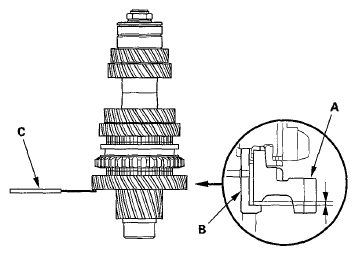

  Fig 1: Measuring Clearance Between 1st Gear & Distance Collar With Feeler Gauge
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the length of the 1st gear distance collar as shown below.
- If the length is not within the standard, replace the 1st gear distance collar.
- If the length is within the standard, go to step 3.
  Standard: 26.53-26.58 mm (1.044-1.046 in.)

  Fig 2: Identifying Length Of 1st Gear Distance
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the thickness of 1st gear.
- If the thickness is less than the service limit, replace 1st gear.
- If the thickness is within the service limit, replace the 1st/2nd synchro hub and reverse gear as a set.
  Standard: 27.42-27.47 mm (1.080-1.081 in.)

  Service Limit: 27.39 mm (1.078 in.)

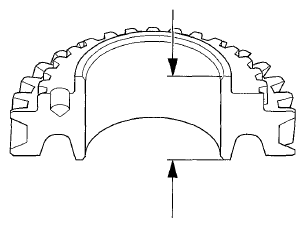

  Fig 3: Identifying 1st Gear Dimension
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the clearance between 2nd gear (A) and 3rd gear (B) with a feeler gauge (C). If the clearance is more than the service limit, go to step 5.
Standard: 0.04-0.12 mm (0.002-0.005 in.)

Service Limit: 0.24 mm (0.009 in.)

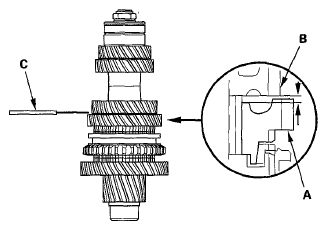

Fig 4: Measuring Clearance Between 2nd Gear & 3rd Gear With Feeler Gauge
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the length of the distance collar.
- If the length is not within the standard, replace the distance collar.
- If the length is within the standard, go to step 6.
  Standard: 27.53-27.56 mm (1.084-1.085 in.)

  Service Limit: 27.51 mm (1.083 in.)

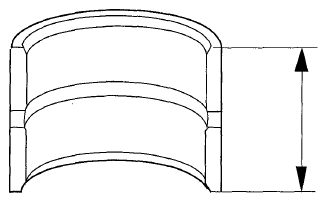

  Fig 5: Identifying Length Of Distance Collar
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the thickness of 2nd gear.
- If the thickness is less than the service limit, replace 2nd gear.
- If the thickness is within the service limit, replace the 1st/2nd synchro hub and reverse gear as a set.
  Standard: 27.41-27.46 mm (1.079-1.081 in.)

  Service Limit: 27.36 mm (1.077 in.)

  Fig 6: Identifying 2nd Gear Dimension
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
