Change Lever Clearance Inspection

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Measure the clearance between the change lever (A) and the select lever (B) with a feeler gauge (C). If the clearance is more than the service limit, go to step 2.
Standard: 0.05-0.35 mm (0.002-0.014 in.)

Service Limit: 0.55 mm (0.022 in.)

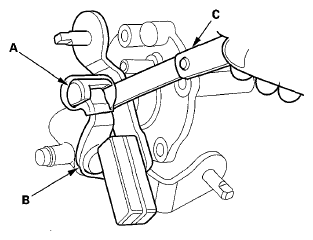

Fig 1: Measuring Clearance Between Change Lever & Select Lever With Feeler Gauge
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the groove width of the change lever.
- If the groove width is not within the standard, replace the change lever.
- If the groove width is within the standard, replace the select lever.
  Standard: 13.00-13.15 mm (0.512-0.518 in.)

  Fig 2: Identifying Change Lever Groove Width
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
