Change Lever Assembly Disassembly/Reassembly

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before reassembling, clean all the parts in solvent, dry them, and apply grease to the contact surfaces as shown below. Do not clean the rubber parts with solvent.

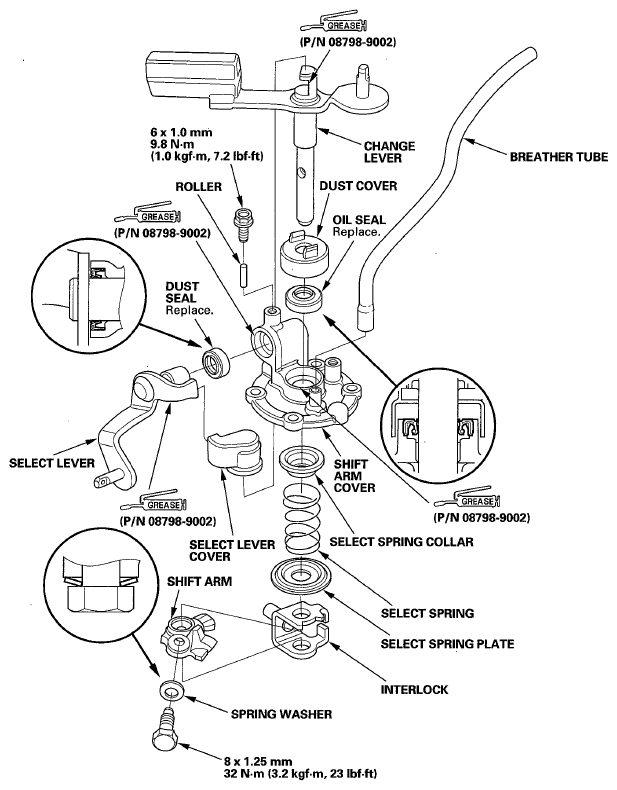

Fig 1: Identifying Change Lever Assembly Replacement Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
