Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Driver handle, 15 x 135L 07749-0010000
Oil seal driver attachment, 64 x 72 mm 07JAD-PN00100

Remove the oil seal (A) from the transmission housing (B).
NOTE: Be careful not to damage the transmission housing while removing the oil seals.

Fig 1: Identifying Oil Seal & Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the oil seal (A) from the clutch housing (B).
NOTE: Be careful not to damage the clutch housing while removing the seal.

Fig 2: Identifying Oil Seal & Clutch Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

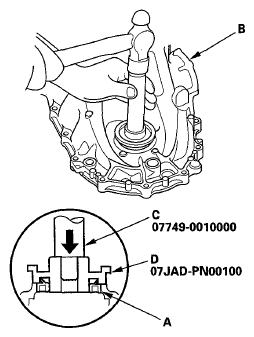

Install the new oil seal (A) in the transmission housing (B) with the 15 x 135L driver handle (C) and the 64 x 72 mm oil seal driver attachment (D).

Fig 3: Identifying Oil Seal, Transmission Housing, Driver Handle & Oil Seal Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new oil seal (A) in the clutch housing (B) with the 15 x 135L driver handle (C) and the 64 x 72 mm oil seal driver attachment (D).

Fig 4: Identifying Oil Seal, Clutch Housing, Driver Handle & Oil Seal Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
