Differential Carrier, Final Driven Gear Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the bolts in a crisscross pattern in several steps, then remove the final driven gear from the differential carrier.

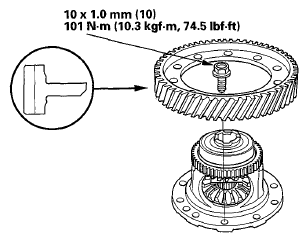

    Fig 1: Crisscross Pattern Bolts With Torque Specifications
    G05953490Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the final driven gear with the chamfer on the inside diameter facing the carrier. Tighten the bolts in a crisscross pattern in several steps.
