Special Tools Required

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Inner driver handle, 40 mm 07746-0030100

Check the carrier bearings for wear and rough rotation. If they rotate smoothly and the rollers show no signs of wear, the bearings are OK.
Remove the carrier bearings (A) with a commercially available bearing puller (B).

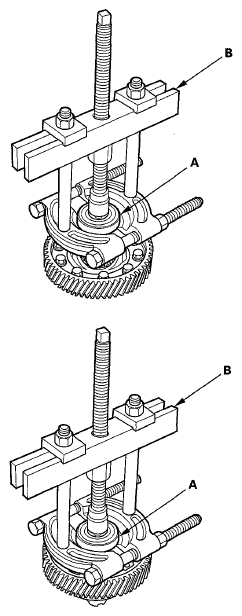

Fig 1: Identifying Carrier Bearings & Commercially Available Bearing Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new bearing (A) with the seal (B) facing away from the differential using the 40 mm inner driver handle and a press. Press each bearing on until it bottoms. There should be no clearance between the bearings and the carrier.

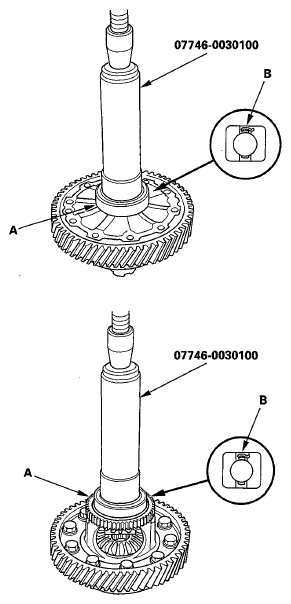

Fig 2: Identifying Bearing & Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
