Backlash Inspection
WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

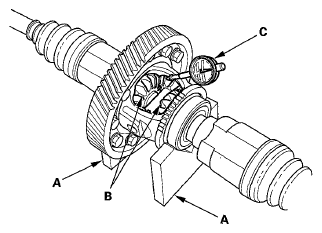

- Place the differential assembly on V-blocks (A), and install both axles.
- Measure the backlash of both pinion gears (B) with a dial indicator (C). If the backlash is not within the standard, replace the differential carrier.
Standard (New): 0.05-0.15 mm (0.002-0.006 in.)
