Testing and Repairs

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Do not use wires or harnesses with broken insulation. Replace them or repair them by wrapping the break with electrical tape or shrink tubing.
Never attempt to modify, splice, or repair SRS wiring. If there is an open or damage is SRS wiring or terminals, replace the harness.
After installing parts, make sure that no wires are pinched under them.
When using electrical test equipment, follow the manufacturer's instructions and those described in this manual.
If possible, insert the probe of the tester from the wire side (except waterproof connector).

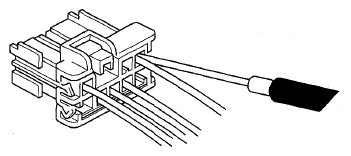

Fig 1: Inserting Probe Of Tester From Wire Side (Except Waterproof Connector)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Use back probe adaptor 07TAZ-001020A.

Fig 2: Identifying Back Probe Adaptor 07TAZ-001020A
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Refer to the instructions in the Honda Terminal Kit for identification and replacement of connector terminals.
