Handling Wires and Harnesses

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Secure wires and wire harnesses to the frame with their respective wire ties at the designated locations.

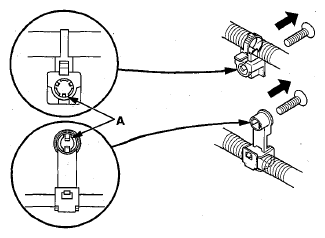

Remove clips carefully; don't damage their locks (A).

Fig 1: Locating Wire Harnesses Clips Locks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing harness clips, make sure the harness doesn't interfere with any moving parts.
Keep wire harnesses away from exhaust components and other hot parts, from sharp edges of brackets and holes, and from exposed screws and bolts.

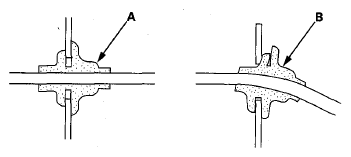

Seat grommets in their grooves properly (A). Do not leave grommets distorted (B).

Fig 2: Locating Grommets Seat Properly And Grommets Distorted
Courtesy of AMERICAN HONDA MOTOR CO., INC.
