Left Second Row Seat

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  • Take care not to scratch the body or tear the seat covers.
  1. Remove the second row seat (see SECOND ROW SEAT REMOVAL/INSTALLATION  ).

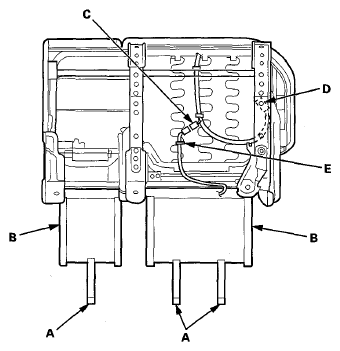

  2. From under the seat cushion, release the hooks (A) of the back cover carpet (B) from the seat cushion frame, then pull the carpet back.
    Fig 1: Identifying Back Cover Carpet And Hooks
    G08053471Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. With seat heater: Disconnect the seat-back heater connector (C), detach the seat heater connector (D), and remove the wire tie (E).
  4. Gently pull out the recline outer cover (A) to detach the clips and to release the hooks (B) of the recline inner cover (C), then remove the cover while releasing the inside edge of the cover from the recline adjuster (D).

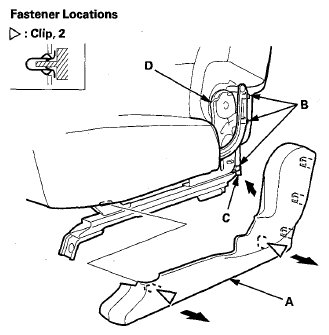

    Fig 2: Pulling Out Recline Outer Cover To Clips
    G08053472Courtesy of AMERICAN HONDA MOTOR CO., INC.

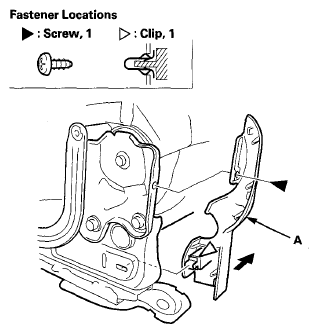

  5. Remove the screw, gently pull out the recline inner cover (A) to detach the clip, then remove it.
    Fig 3: Pulling Out Recline Inner Cover To Clip
    G08053473Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Gently pull out the ISO-FIX bracket outer cover (A) to detach the clip. Release the hooks (B) from the ISO-FIX bracket inner cover (C), and release the hook (D) of the inner cover from the outer cover, then remove the cover while releasing the inside edge of it from the ISO-FIX bracket (E).

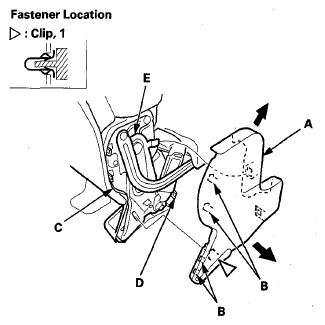

    Fig 4: Pulling Out ISO-FIX Bracket Outer Cover To Clip
    G08053474Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the screw gently pull out the ISO-FIX bracket inner cover (A) to detach the clips, then remove it.

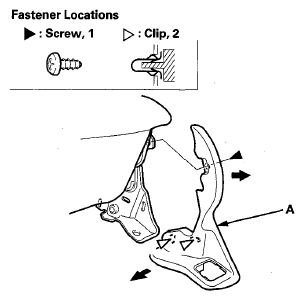

    Fig 5: Pulling Out ISO-FIX Bracket Inner Cover To Clips
    G08053475Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the screw, gently pull out the rear center outer cover (A) to release the hooks (B) from the center inner cover (C), and to release the hooks (D) of the inner cover from the outer cover, then remove it.

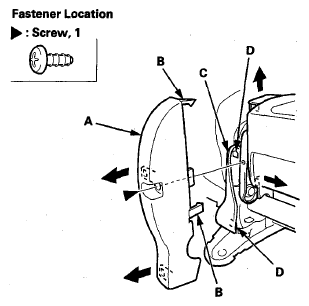

    Fig 6: Pulling Out Rear Center Outer Cover To Hooks From Center Inner Cover
    G08053476Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Gently pull out the center inner cover (A) to detach the clip, then remove it.

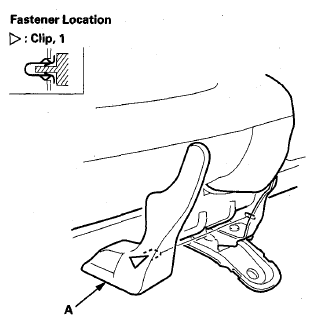

    Fig 7: Pulling Out Center Inner Cover To Clip
    G08053477Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Remove the seat cushion (A).
    1. Remove the seat belt buckles (B) and the seat belt detachable anchor (C) from the elastic straps (D).
    2. Remove the nuts. Using a TORX T30 bit, remove the bolts.

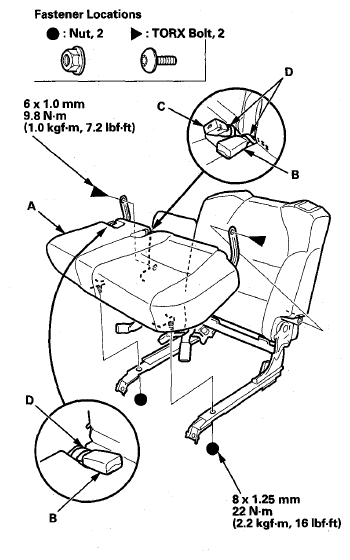

      Fig 8: Seat Cushions With Torque Specifications
      G08053478Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the screw, then remove the front center outer cover (A).

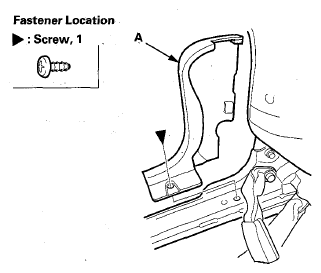

    Fig 9: Identifying Front Center Outer Cover And Screw
    G08053479Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Using a TORX T40 bit, remove the bolts (A, B), then remove the seat-back (C) and the bushing (D).

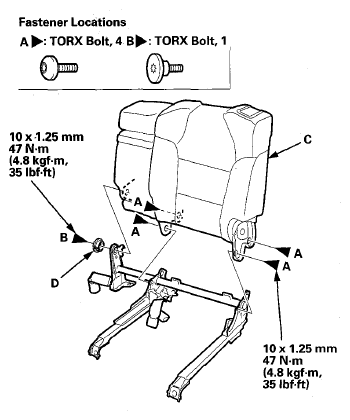

    Fig 10: Seat-Back With Torque Specifications
    G08053480Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Assemble the seat-back and seat cushion in the reverse order of disassembly, and note these items:
    • If the bushing is damaged or stress-whitened, replace it with a new one.
    • Replace any damaged the clips with new ones.
    • Push the clips and hooks into place securely.
    • With seat heater: Replace the wire tie you removed with a new one.
    • With seat heater: Make sure the seat-back heater connector is plugged in properly.
