Seat Cushion Cover

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the second row seat (see SECOND ROW SEAT REMOVAL/INSTALLATION ).
Remove the recline outer cover:
- Left second row seat (see step 4 under Second Row Seat Disassembly/Reassembly )
- Right second row seat (see step 5 under Second Row Seat Disassembly/Reassembly )
From under the seat cushion, release the hooks (A) of the back cover carpet (B) from the seat cushion frame, then pull the carpet back.
Left second row seat

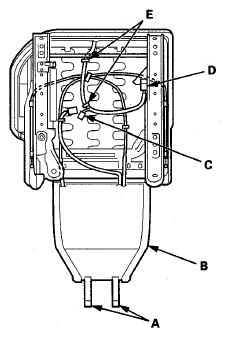

Fig 1: Identifying Seat Cushion Heater Connector And Wire Tie (Left Second Row Seat)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right second row seat

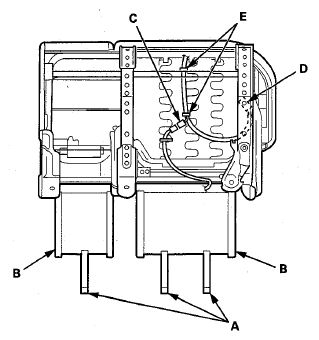

Fig 2: Identifying Seat Cushion Heater Connector And Wire Tie (Right Second Row Seat)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With seat heater: Disconnect the seat-back heater connector (C), detach the seat heater connector (D), and remove the wire ties (E).
Release all of the clip (A) and the hook strips (B)from under the seat cushion (C).
Left seat cushion

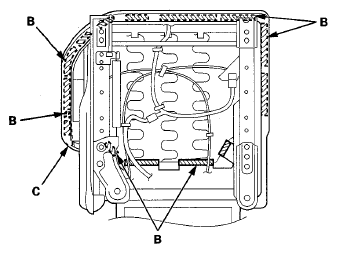

Fig 3: Identifying Under Seat Cushion, Clip And Hook Strips (Left Seat Cushion)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right seat cushion

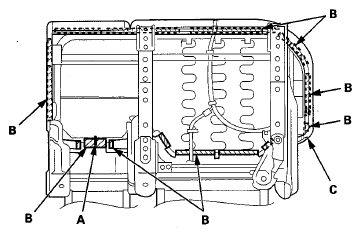

Fig 4: Identifying Under Seat Cushion, Clip And Hook Strips (Right Seat Cushion)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the seat cushion cover/pad (A) from the seat cushion frame (B).

Fig 5: Removing Seat Cushion Cover/Pad From Seat Cushion Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pass the retainers (A) through the slots in the seat-back pad (left seat cushion). Pull back the edge of the seat cushion cover all the way around, and release the upholstery rings (B), then remove the seat cushion cover.
Left seat cushion

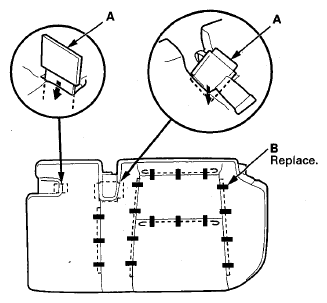

Fig 6: Identifying Seat Cushion Cover Upholstery Rings And Retainers (Left Seat Cushion)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right seat cushion

Fig 7: Identifying Seat Cushion Cover Upholstery Rings And Retainers (Right Seat Cushion)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the seat-back cover in the reverse order of removal, and note these items:
- To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hooks, the hook strips, and the clips.
- Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
- Replace the wire ties you removed with new ones.
- With seat heater: Make sure the seat-back heater connector is plugged in properly.

  Fig 8: Identifying Seat Cushion Cover, Pad Wires And Upholstery Rings
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
