Passenger's Seat Cushion Frame Disassembly/Reassembly

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Do the front passenger's seat weight sensor initialization (see FRONT PASSENGER'S WEIGHT SENSOR INITIALIZATION ) after front passenger's seat cushion frame replacement.

NOTE:

Put on gloves to protect your hands.
Apply multipurpose grease to the sliding areas of the seat tracks.

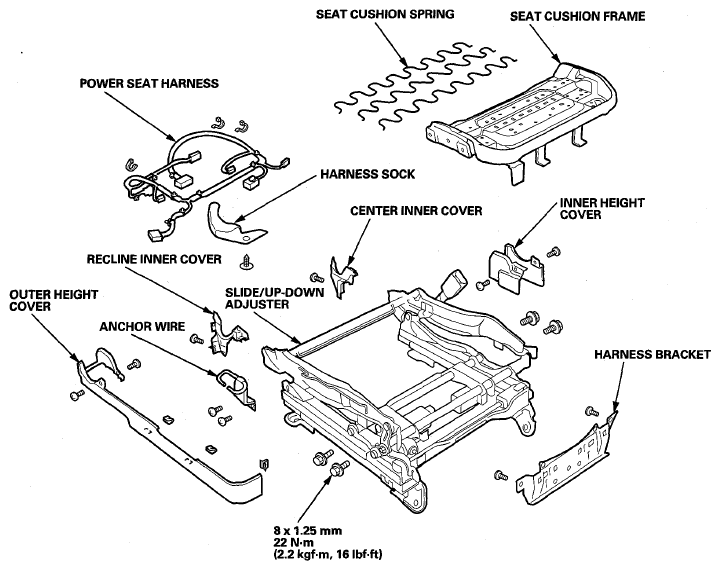

Fig 1: Exploded View Of Passenger's Seat Cushion Frame With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
