Driver's Seat Cushion Frame Disassembly/Reassembly

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Check the operation of the driver's seat position sensor after any of these actions (see DRIVER'S SEAT POSITION SENSOR OPERATION CHECK ):
- Driver's seat position sensor replacement
- Cover plate (front side of driver's seat slide rail) replacement

NOTE:

Put on gloves to protect your hands.
Apply multipurpose grease to the sliding areas and pivot areas of the seat tracks.

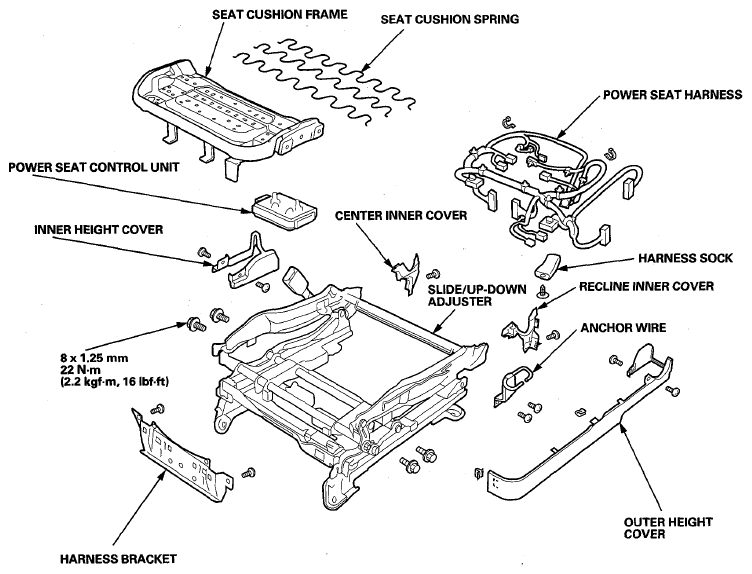

Fig 1: Exploded View Of Driver's Seat Cushion Frame With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
