Armrest Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear side trim panel.
Remove the screws and release the hooks (A), then remove the armrest (B).

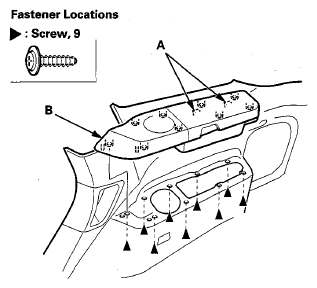

Left side

Fig 1: Identifying Release Hooks, Armrest And Screws (Left Side)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

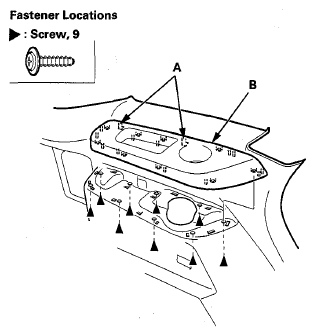

Right side

Fig 2: Identifying Release Hooks, Armrest And Screws (Right Side)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the armrest in the reverse order of removal.
