Without AcuraLink

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
Disconnect the connectors (A), then remove the bolts (B) and pull out the XM receiver (C).

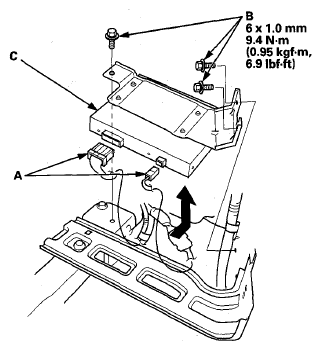

Fig 1: AcuraLink Control Unit (XM Receiver) With Torque Specifications (Without Acuralink)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the XM receiver in the reverse order of removal.
If you replaced the XM Receiver, register the new XM Receiver unit I.D. number with XM radio 800-852-9696.
