XM Antenna Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
  2. Remove the nut (A) from the XM antenna (B).

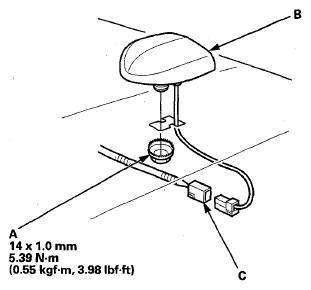

    Fig 1: XM Antenna With Torque Specifications
    G08054275Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (C) and remove the XM antenna.
  4. Install the XM antenna in the reverse order of removal.
