USB Adapter Holder/Auxiliary Jack Assembly Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Detach the connector (A) from the clip. Remove the cover (B), and disconnect the USB adapter connector (C).

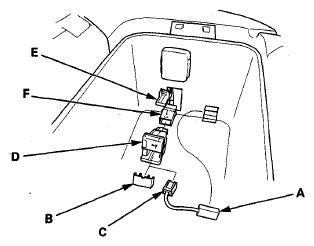

    Fig 1: Identifying USB Adapter Holder/Auxiliary Jack Assembly
    G08054276Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully pull out the USB adapter holder/auxiliary jack assembly (D) from the center console box, then disconnect the 5P connector (E), and remove the USB main harness connector (F) from the USB adapter holder/auxiliary jack assembly.
  4. Install the USB adapter holder/auxiliary jack assembly in the reverse order of removal.
