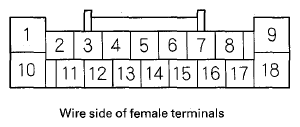

Stereo Amplifier Connector B (18P)
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
| Cavity |
Wire Color |
Terminal Name |
Connect to |
| B1 |
PNK |
WOOFER PRE- |
Subwoofer |
| B2 |
PNK |
CTR SPKR- |
Front center speaker |
| B3 |
ORN |
RR R SPKR- |
Right rear door speaker |
| B4 |
PUR |
RR L SPKR- |
Left rear door speaker |
| B5 |
BLK |
R D-PLR SPKR- |
Right satellite speaker |
| B6 |
BRN |
FR R SPKR- |
Front passenger's door speaker, right tweeter |
| B7 |
GRN |
FR L DR SPKR- |
Driver's door speaker, left tweeter |
| B8 |
GRY |
L D-PLR SPKR - |
Left satellite speaker |
| B9 |
BLK |
GND |
Body ground to G504 |
| B10 |
BLU |
WOOFER PRE+ |
Subwoofer |
| B11 |
BLK |
CTR SPKR+ |
Front center speaker |
| B12 |
BLU |
RR R SPKR + |
Right rear door speaker |
| B13 |
PNK |
RR L SPKR+ |
Left rear door speaker |
| B14 |
RED |
R D-PLR SPKR+ |
Right satellite speaker |
| B15 |
RED |
FR R SPKR + |
Front passenger's door speaker, right tweeter |
| B16 |
WHT |
FR L DR SPKR+ |
Driver's door speaker, left tweeter |
| B17 |
BLU |
L D-PLR SPKR + |
Left satellite speaker |
| B18 |
PUR |
+ B |
No. 8 (30 A) fuse in the main under-hood fuse box |
Courtesy of AMERICAN HONDA MOTOR CO., INC.
| Cavity |
Wire Color |
Terminal Name |
Connect to |
| B1 |
PUR |
RR L SPKR- |
Left rear door speaker |
| B2 |
GRN |
FR L DR SPKR- |
Driver's door speaker, left tweeter |
| B3 |
GRY |
L D-PLR SPKR- |
Subwoofer |
| B5 |
ORN |
RR R SPKR- |
Right rear door speaker |
| B6 |
BRN |
FR R SPKR- |
Front passenger's door speaker, right tweeter |
| B7 |
PNK |
CTR SPKR- |
Front center speaker |
| B8 |
BLK |
R D-PLR SPKR- |
Subwoofer |
| B9 |
BLK |
GND |
Body ground to G504 |
| B10 |
PNK |
RR L SPKR+ |
Left rear door speaker |
| B11 |
WHT |
FR L DR SPKR+ |
Driver's door speaker, left tweeter |
| B12 |
BLU |
L D-PLR SPKR+ |
Subwoofer |
| B14 |
BLU |
RR R SPKR+ |
Right rear door speaker |
| B15 |
RED |
FR R SPKR + |
Front passenger's door speaker, right tweeter |
| B16 |
BLK |
CTR SPKR+ |
Front center speaker |
| B17 |
RED |
R D-PLR SPKR+ |
Subwoofer |
| B18 |
PUR |
+ B |
No. 8 (30 A) fuse in the main under-hood fuse box |
