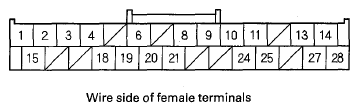

Stereo Amplifier Connector A (28P)
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
| Cavity |
Wire Color |
Terminal Name |
Connect to |
| A1 |
BLU |
RS 485- |
Audio-Navigation unit |
| A2 |
PNK |
RS 485 GND |
Audio-Navigation unit |
| A3 |
LT GRN |
+ B |
Audio-Navigation unit |
| A4 |
BLU |
CTR PRE IN + |
Audio-Navigation unit |
| A6 |
GRN |
SW PRE IN + |
Audio-Navigation unit |
| A8 |
BRN |
RG SH |
Shield for terminals No. 9 and No. 21 |
| A9 |
LT BLU |
RG GND |
Audio-Navigation unit |
| A10 |
GRN |
FL PRE IN + |
Audio-Navigation unit |
| A11 |
BLU |
FR PRE IN + |
Audio-Navigation unit |
| A13 |
LT BLU |
RL PRE IN + |
Audio-Navigation unit |
| A14 |
BRN |
RR PRE IN + |
Audio-Navigation unit |
| A15 |
GRN |
RS 485+ |
Audio-Navigation unit |
| A18 |
PNK |
CTR PRE IN- |
Audio-Navigation unit |
| A19 |
RED |
SW PRE IN- |
Audio-Navigation unit |
| A20 |
WHT |
SUBW SW +B |
Subwoofer |
| A21 |
PUR |
RGL+ |
Audio-Navigation unit |
| A24 |
RED |
FL PRE IN- |
Audio-Navigation unit |
| A25 |
PNK |
FR PRE IN- |
Audio-Navigation unit |
| A27 |
PUR |
RL PRE IN- |
Audio-Navigation unit |
| A28 |
YEL |
RR PRE IN- |
Audio-Navigation unit |
