XM radio display is blank and no station information is displayed (with navigation without AcuraLink)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Check the vehicle battery condition first (see BATTERY TEST ).
Check the connectors for poor connections or loose terminals.

Turn the ignition switch to LOCK (0).
Measure the voltage between XM receiver connector A (14P) terminal No. 1 and body ground.

Fig 1: Measuring Voltage Between Connector A (14P) Terminal No. 1 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 3.

NO -Repair an open in the wire between the No. 5 (10 A) fuse in the under-dash fuse/relay box and XM receiver connector A (14P) terminal No. 1.
Turn the ignition switch to ON (II).
Measure the voltage between XM receiver connector A (14P) terminal No. 11 and body ground.

Fig 2: Measuring Voltage Between Connector A (14P) Terminal No. 11 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there less than 0.2 V?

YES -Go to step 5.

NO -Repair an open or high resistance in the wire between XM receiver connector A (14P) terminal No. 11 and body ground (G606) (see CONNECTOR TO FUSE/RELAY BOX INDEX ).
Turn the ignition switch to LOCK (0).
Disconnect audio-navigation unit connector D (14P) and XM receiver connector A (14P).
Check for continuity between XM receiver connector A 14P) terminal No. 2 and body ground.

Fig 3: Measuring Voltage Between Connector A (14P) Terminal No. 2 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair a short to body ground in the wire between the audio-navigation unit and the XM receiver.

NO -Go to step 8.

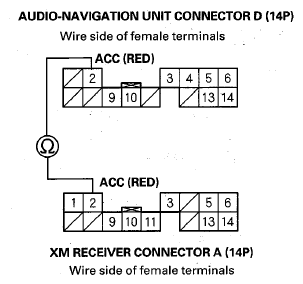

Check for continuity between audio-navigation unit connector D (14P) terminal No. 2 and XM receiver connector A (14P) terminal No. 2.

Fig 4: Checking Continuity Between Connector D (14P) Terminal No. 2 And Connector A (14P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 9.

NO -Repair an open in the wire between the audio-navigation unit and the XM receiver.

Check for continuity between audio-navigation unit connector D (14P) and XM receiver connector A (14P) according to the table.

Audio-Navigation unit connector	XM receiver connector	Wire color
D9	A9	GRN
D10	A10	RED

Fig 5: Identifying Audio-Navigation Unit Connector D (14P) Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Identifying XM Receiver Connector A (14P) Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 10.

NO -There is an open in the wire(s) between the audio-navigation unit and the XM receiver. Replace the affected shielded harness.

Check for continuity between body ground and XM receiver connector A (14P) terminal No. 9 and No. 10 individually.

Fig 7: Checking Continuity Between Body Ground And Connector A (14P) Terminal No. 9 And No. 10
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -There is a short to body ground in the wire(s) between the audio-navigation unit and the XM. receiver. Replace the affected shielded harness.

NO -Go to step 11.

Check for continuity between the terminals of XM receiver connector A (14P) according to the table.

From terminal	To terminals
A3 (BRN)	A9 (GRN), A10 (RED)
A9 (GRN)	A10 (RED)

Fig 8: Identifying XM Receiver Connector A (14P) Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity between any of the terminals?

YES -There is a short in the wires between the audio-navigation unit and the XM receiver. Replace the affected shielded harness.

NO -Substitute a known-good audio-navigation unit (including the HDD) (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ), and recheck. If the symptom/indication goes away, replace the original audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ). If the symptom is still present, substitute a known-good XM receiver (see ACURALINK CONTROL UNIT (XM RECEIVER) REMOVAL/INSTALLATION ), and recheck. If the symptom/indication goes away, replace the original XM receiver (see ACURALINK CONTROL UNIT (XM RECEIVER) REMOVAL/INSTALLATION ).
