Stereo Amplifier Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
Disconnect the connectors (A).

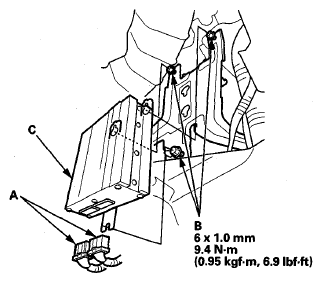

Fig 1: Stereo Amplifier With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the bolts (B), then pull out the stereo amplifier (C).
Install the stereo amplifier in the reverse order of removal.
