Door Speaker

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door panel.
- Front (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
- Rear (see FRONT DOOR SIDE SILL SEAL REPLACEMENT ).
Remove the three mounting screws from the speaker (A).

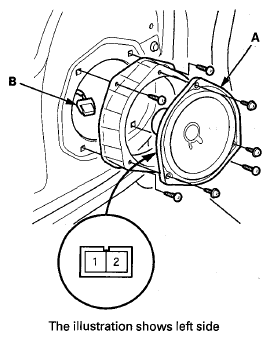

Fig 1: Identifying Speaker, Connectors With Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (B), and remove the speaker.
Measure the resistance between the terminals No. 1 and No. 2. There should be about 2 Ω.
If the resistance is not as specified, replace the door speaker.
