Auxiliary Jack Assembly Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Carefully pull out the auxiliary jack assembly (A) from center console box, then disconnect the 5P connector (B).

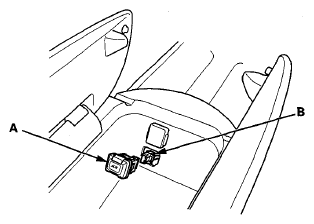

    Fig 1: Identifying Jack Assembly And 5P Connector
    G08054277Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the auxiliary jack assembly in the reverse order of removal.
