With AcuraLink

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The AcuraLink must be reactivated by Acura Client Services when:

The AcuraLink control unit (XM receiver) is replaced.
DATA RESET was selected while in the self-diagnostic function.
Vehicle ownership changes.

Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
Disconnect the connectors (A), then remove the bolts (B) and pull out the AcuraLink control unit (XM receiver) (C).

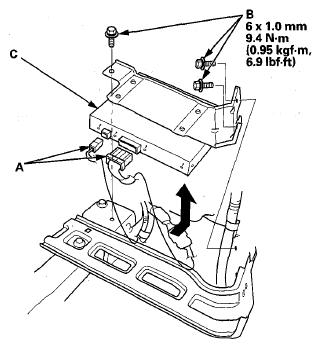

Fig 1: AcuraLink Control Unit (XM Receiver) With Torque Specifications (With Acuralink)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the AcuraLink control unit (XM receiver) in the reverse order of removal.
NOTE: If you replaced the AcuraLink control unit (XM receiver), make sure it has the latest software (see ACURALINK CONTROL UNIT UPDATE ).
If you replaced the AcuraLink control unit, register the new AcuraLink (XM Receiver) unit I.D. number with XM radio 800-852-9696 and Acura Client Services 800-382-2238 and request a reactivation.
