AM/FM Antenna Amplifier Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
  2. Disconnect the connector (A) from the AM/FM antenna amplifier (B).

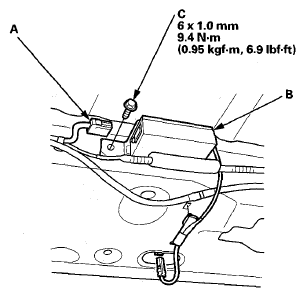

    Fig 1: AM/FM Antenna Amplifier Replacement Components With Torque Specifications
    G08054274Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolt (C) and AM/FM antenna amplifier.
  4. Install the unit in the reverse order of removal.
