Vertical Acceleration Sensor Replacement: Front

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  3. Remove the TPMS control unit (see TPMS CONTROL UNIT REPLACEMENT ).
  4. Remove the sensor mounting nuts, and pull out the vertical acceleration sensor (A).

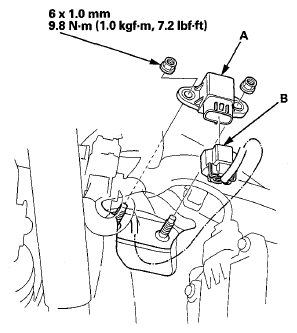

    Fig 1: Vertical Acceleration Sensor With Torque Specifications (Front)
    G08052950Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the vertical acceleration sensor connector (B).
  6. Install the vertical acceleration sensor in the reverse order of removal.
  7. Test-drive the vehicle, and check that the active damper system indicator does not come on (see ACTIVE DAMPER SYSTEM DAMPER UNITS  ).
