DTC 5-5: Active Damper Control Unit Internal Right-front Damper Coil Drive Circuit Stuck OFF; DTC 5-6: Active Damper Control Unit Internal Left-front Damper Coil Drive Circuit Stuck OFF; DTC 5-7: Active Damper Control Unit Internal Right-rear Damper Coil Drive Circuit Stuck OFF; DTC 5-8: Active Damper Control Unit Internal Left-rear Damper Coil Drive Circuit Stuck OFF
- Turn the ignition switch to LOCK (0).
- Disconnect the appropriate damper coil 2P connector, then reconnect the connector.
DTC Appropriate Damper Coil 5-5 Right-front 5-6 Left-front 5-7 Right-rear 5-8 Left-rear - Turn the ignition switch to ON (II).
- Clear the DTC with the HDS.
- Turn the ignition switch to LOCK (0).
- Start the engine.
- Do the DAMPER FORCE OPERATION TEST in the FUNCTIONAL TESTS MENU with the HDS.
- Check for DTCs with the HDS.
Is DTC 5-5, 5-6, 5-7, or 5-8 indicated?
YES -Go to step 9.
NO -Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting (see INTERMITTENT FAILURES ).
- Turn the ignition switch to LOCK (0).
- Disconnect active damper control unit connector A (20P) (see ACTIVE DAMPER CONTROL UNIT REPLACEMENT ).
- Turn the ignition switch to ON (II).
- Check for continuity between the appropriate active damper control unit connector A (20P) terminal and appropriate damper coil 2P connector terminal No. 1 (see table).

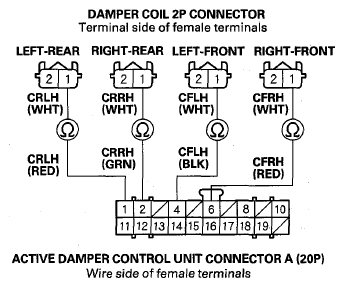

DTC Active Damper Control Unit Connector A Terminal Appropriate Damper Coil 5-5 No. 6 Right-front 5-6 No. 4 Left-front 5-7 No. 2 Right-rear 5-8 No. 1 Left-rear Fig 1: Checking Continuity Between Active Damper Control Unit Connector A (20P) Terminal And Damper Coil 2P Connector Terminal No. 1Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 17.
NO -Repair an open in the wire between the appropriate damper coil and the active damper control unit, then go to step 15.
- Check for continuity between the appropriate active damper control unit connector A (20P) terminal and appropriate damper coil 2P connector terminal No. 2 (see table).

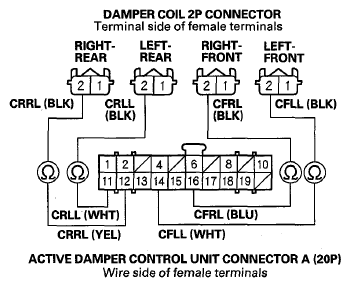

DTC Active Damper Control Unit Connector A Terminal Appropriate Damper Coil 5-5 No. 16 Right-front 5-6 No. 14 Left-front 5-7 No. 12 Right-rear 5-8 No. 11 Left-rear Fig 2: Checking Continuity Between Active Damper Control Unit Connector A (20P) Terminal And Damper Coil 2P Connector Terminal No. 2Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Replace the appropriate damper unit: Front (see DAMPER/SPRING REMOVAL AND INSTALLATION ), rear (see DAMPER REPLACEMENT ) then go to step 15.
NO -Repair an open in the wire between the appropriate damper coil and the active damper control unit, then go to step 15.
- Turn the ignition switch to LOCK (0).
- Reconnect all connectors.
- Turn the ignition switch to ON (II).
- Clear the DTC with the HDS.
- Turn the ignition switch to LOCK (0).
- Start the engine.
- Do the DAMPER FORCE OPERATION TEST in the FUNCTIONAL TESTS MENU with the HDS.
- Check for DTCs with the HDS.
Is any DTC indicated?
YES -Go to the indicated DTC'S TROUBLESHOOTING .
NO -Troubleshooting is complete.
