Circuit Diagram

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

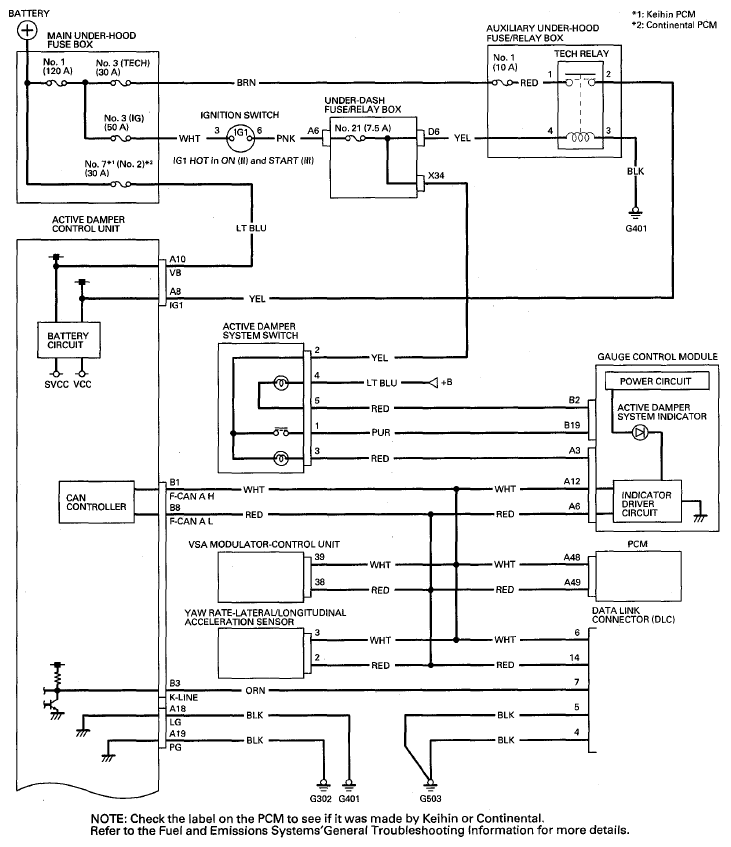

Fig 1: Active Damper Control Unit Circuit Diagram (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

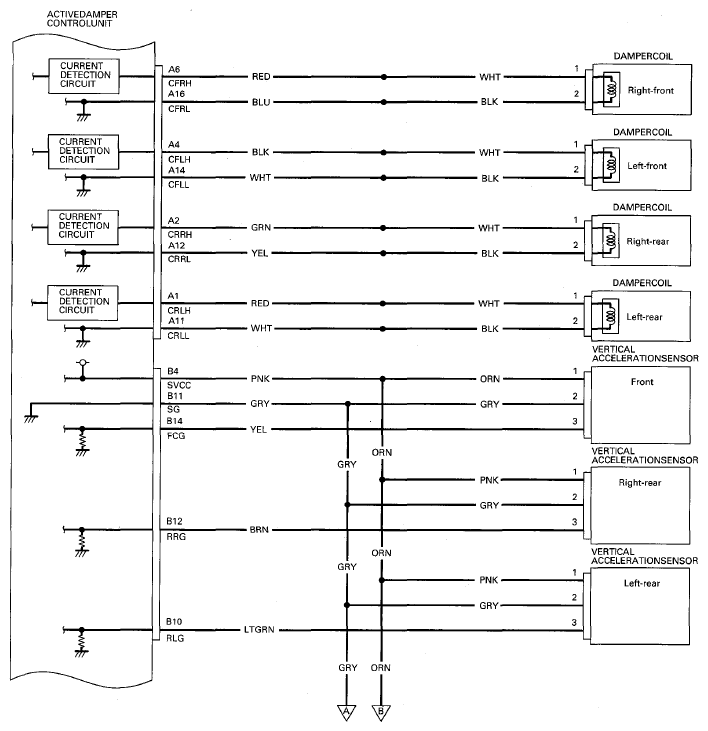

Fig 2: Active Damper Control Unit Circuit Diagram (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

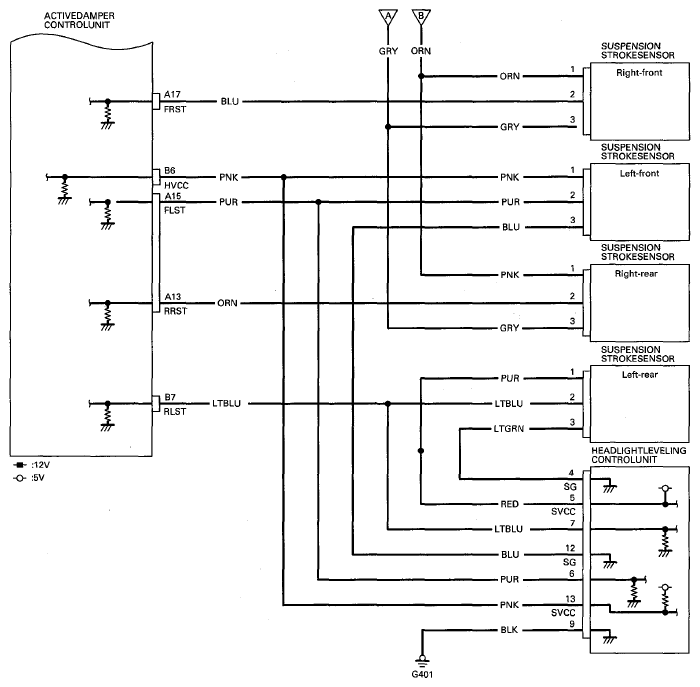

Fig 3: Active Damper Control Unit Circuit Diagram (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

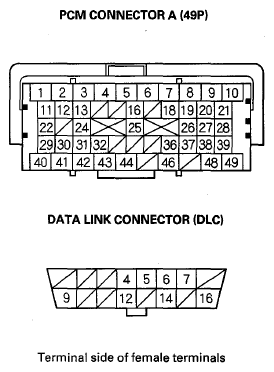

Fig 4: Identifying Active Damper Control Unit Connector Terminals (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

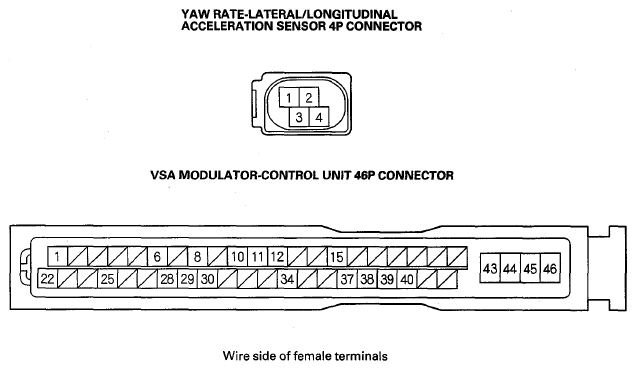

Fig 5: Identifying Active Damper Control Unit Connector Terminals (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

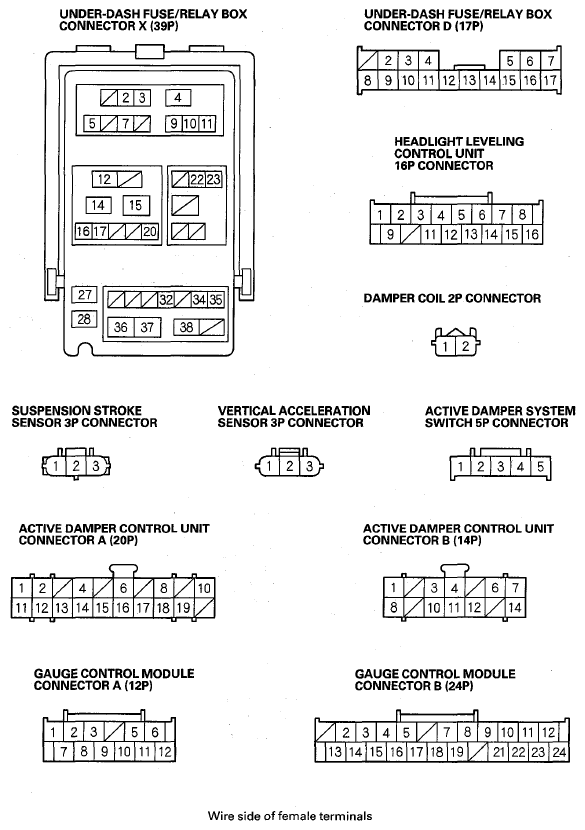

Fig 6: Identifying Active Damper Control Unit Connector Terminals (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
