Active Damper System Switch Test/Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Remove the center console box (see CENTER CONSOLE BOX REPLACEMENT ).
  4. Push out the active damper system switch (A) from the back of the center console.

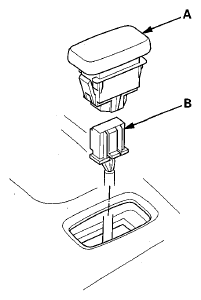

    Fig 1: Identifying Active Damper System Switch And Connector
    G08052955Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the active damper system switch connector (B).
  6. Check for continuity between the active damper system switch connector terminals in each switch position according to the table.

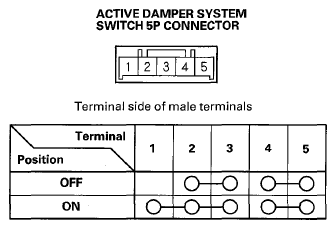

    Fig 2: Identifying Active Damper System Switch 15P Connector Terminals
    G08052956Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. If the continuity is not as specified, replace the illumination bulb or the switch.
  8. Install the reverse order of removal.
