Tire Pressure Sensor Replacement: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Use only wheels that have a "TPMS" stamp (A) on them.
This vehicle may be equipped with one of the two types of wheels.

Type 1

Fig 1: Identifying TPMS Stamp - Type 1

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Type 2

Fig 2: Identifying TPMS Stamp - Type 2

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Before installing the tire pressure sensor, clean the mating surfaces on the sensor and the wheel.
Install the tire pressure sensor (A) and the washer (B) to the wheel (C), and tighten the valve stem nut (D) finger tight. Make sure the pressure sensor is resting on the wheel.

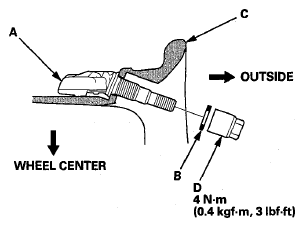

Fig 3: Identifying Tire Pressure Sensor Installation Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the valve stem nut to the specified torque while holding the tire pressure sensor.
NOTE: Do not use air or electric impact tools to tighten a valve stem nut.
Lube the tire bead, and position the wheel so the tire machine (A) are next to the valve stem (B) and will move away from it when the machine starts. Then install the tire onto the wheel.

Fig 4: Installing Tire Onto Wheel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inflate the tire to 300 kPa (3.1 kgf/cm² , 44 psi) to seat the tire bead to the rim, then adjust the tire pressure (see WHEEL ALIGNMENT ), then install the valve stem cap.
NOTE: Make sure the tire bead is uniformly seated on both sides of the rim.
Check and adjust the wheel balance, then install the wheels on the vehicle.
Remove the jack stands, and lower the vehicle. Torque the wheel nuts to specifications (see step 2 under KNUCKLE/HUB BEARING UNIT REPLACEMENT ).
Connect the HDS and memorize the tire pressure sensor IDs (see MEMORIZING THE TIRE PRESSURE SENSOR ID ).
