Initiator Replacement: Front

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0).
  2. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  3. Remove the front wheel.
  4. Remove the front inner fender (see FRONT INNER FENDER REPLACEMENT ).
  5. Disconnect the initiator 3P connector (A).

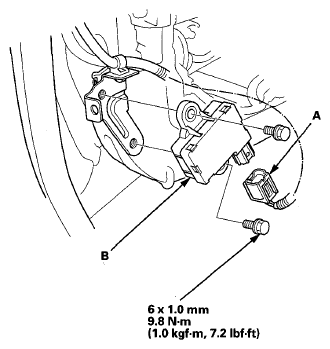

    Fig 1: Front Initiator 3P Connector And Mounting Bolts With Torque Specifications
    G08052998Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the initiator (B) from the inner side of the wheelwell.
  7. Install the initiator in the reverse order of removal.
