How to Retrieve DTCs

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition switch LOCK (0), connect the HDS (Honda Diagnostic System) to the data link connector (DLC) (A) located under the driver's side of the dashboard.

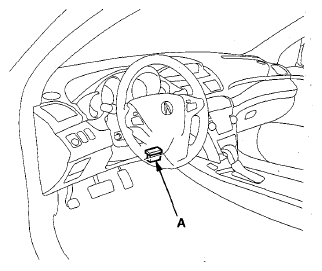

Fig 1: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II).
Make sure the HDS communicates with the vehicle and the TPMS control unit. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
Follow the prompts on the HDS to display the DTC(s) on the screen. After determining the DTC, refer to the DTC TROUBLESHOOTING .
NOTE: See the HDS Help menu for specific instructions.
Turn the ignition switch to LOCK (0).
