Release Bearing Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission (see TRANSMISSION REMOVAL ).
  2. Remove the release fork boot (A) from the clutch housing (B).

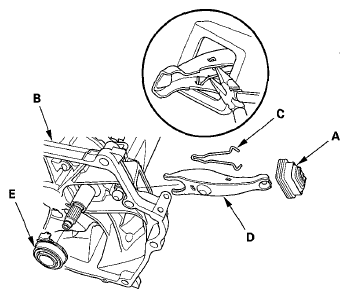

    Fig 1: Releasing Fork Set Spring With Pliers
    G05953328Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Squeeze the release fork set spring (C) with pliers to remove the release fork (D) from the clutch housing. Remove the release bearing (E).
