Release Bearing Installation

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply high temp urea grease (P/N 08798-9002) to the release fork (A), the release fork bolt (B), the release bearing (C), and the release bearing guide (D) in the shaded areas, then set the release fork set spring (E).
    NOTE: Replace the release fork bolt if necessary.

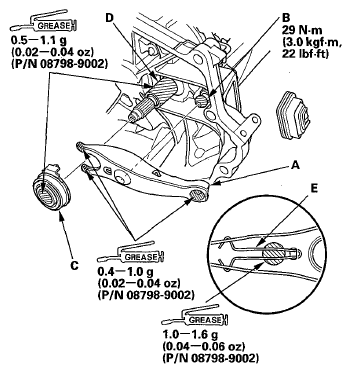

    Fig 1: Identifying Release Fork, Bolt, Bearing, Guide & Set Spring
    G05953330Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. With the release fork (A) slid between the release bearing pawls (B), install the release bearing on the mainshaft while inserting the release fork through the hole (C) in the clutch housing.

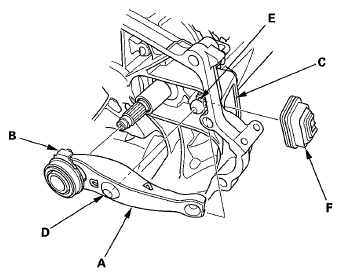

    3. Fig 2: Identifying Release Fork, Bolt, Pawls, Hole & Boot
    G05953331Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Align the detent (D) of the release fork with the release fork bolt (E), then press the detent of the release fork over the release fork bolt squarely.
  4. Install the release fork boot (F). Make sure the boot seals around the release fork and clutch housing.
  5. Move the release fork (A) right and left to make sure that it fits properly against the release bearing (B), and that the release bearing slides smoothly. Wipe off any excess grease.

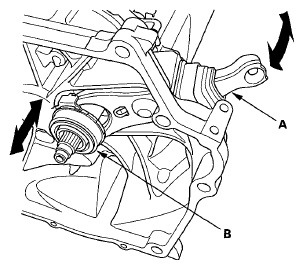

    6. Fig 3: Identifying Release Fork & Release Bearing
    G05953332Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the transmission (see TRANSMISSION INSTALLATION ).
