Pilot Bearing Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

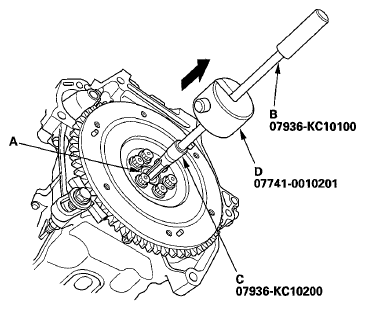

Remove the crankshaft pilot bearing (A) using the bearing remover shaft (B), bearing remover head (C), and the sliding hammer weight (D).

Fig 1: Identifying Crankshaft Pilot Bearing, Sliding Hammer Weight, Bearing Remover Shaft & Head
Courtesy of AMERICAN HONDA MOTOR CO., INC.

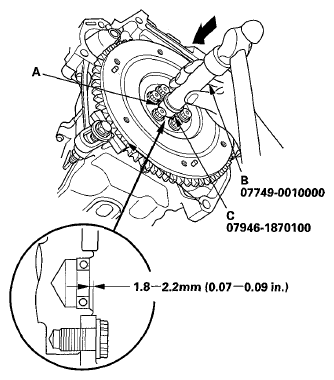

Install a new pilot bearing (A) into the crankshaft using the 15 x 135L driver handle (B) and 28 x 30 mm bearing driver attachment (C).

Fig 2: Identifying Pilot Bearing, Driver Handle & Bearing Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
