Clutch Disc Inspection and Removal

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clutch disc (A) and the clutch alignment tool set (B).

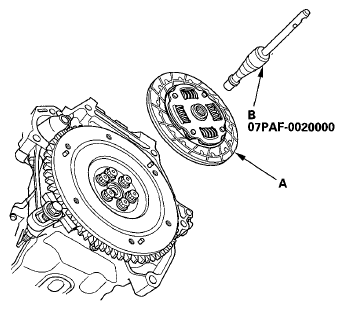

Fig 1: Identifying Clutch Disc & Clutch Alignment Tool Set
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the lining of the clutch disc for signs of slippage or oil. If the clutch disc looks burnt or is oil soaked, replace the clutch disc. If the clutch disc is oil soaked, find and repair the source of the oil leak.
Measure the clutch disc thickness. If the measurement is less than the service limit, replace the clutch disc.
Standard (New): 7.25-7.95 mm

(0.285-0.3130 in.) max.

Service Limit: 5.0 mm (0.197 in.)

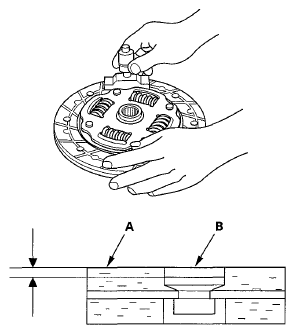

Fig 2: Measuring Clutch Disc Thickness
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the rivet depth from the clutch disc lining surface (A) to the rivets (B) on both sides. If the measurement is less than the service limit, replace the clutch disc.
Standard (New): 1.00-1.50 mm (0.039-0.059 in.) max.

Service Limit: 0.2 mm (0.008 in.)

Fig 3: Measuring Depths Of Rivets From Clutch Disc Lining Surface To Rivets On Both Sides
Courtesy of AMERICAN HONDA MOTOR CO., INC.
