Clutch Pedal, Clutch Pedal Position Switch, and Clutch Interlock Switch Adjustment

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For a cruise control problem, check the clutch pedal position switch (see CLUTCH PEDAL POSITION SWITCH TEST ).
For a clutch interlock operation problem, check the clutch interlock switch (see CLUTCH INTERLOCK SWITCH TEST ).
Remove the driver's floor mat before adjusting the clutch pedal.
If there is no clearance between the master cylinder piston and the push rod, the release bearing will be held against the diaphragm spring, which can result in clutch slippage or other clutch problems.
Without cruise control: The adjusting bolt is substituted as clutch pedal position switch. The clutch pedal height adjustment is same procedure as with the clutch pedal position switch.

Disconnect the clutch pedal position switch connector and the clutch interlock switch connector.
Loosen the clutch pedal position switch locknut (A), and back off the clutch pedal position switch (B) until it no longer touches the clutch pedal (C).

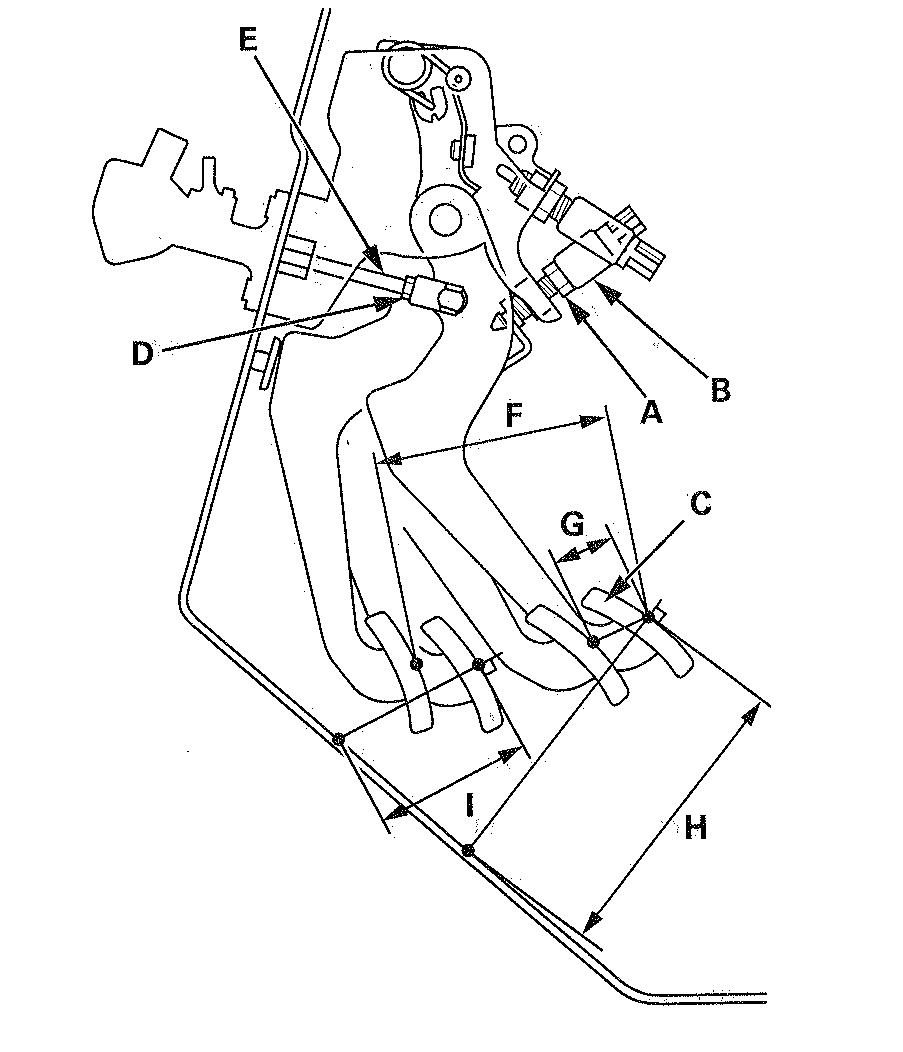

Fig 1: Identifying Clutch Pedal Position Switch, Locknut & Clutch Pedal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the clutch pushrod locknut (D), and turn the pushrod (E) in or out to get the specified height (F), and the stroke (G) at the clutch pedal. If adjusting the pushrod causes the clutch pedal to contact the clutch pedal position switch, back off the switch further.
F - Clutch Pedal Stroke: 120-130 mm (4.72-5.12 in.)

G - Clutch Pedal Free Play (Reference): 4.1-17.4 mm (0.161-0.685 in)

H - Clutch Pedal Height (Reference): 150 mm (5.91 in)

I - Clutch Pedal Disengagement Height (Minimum to the floor) (Reference): 75.7 mm (2.98 in)
Tighten the clutch pushrod locknut (A).

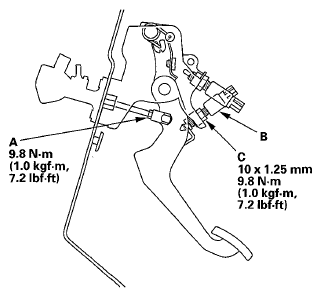

Fig 2: Clutch Pushrod Locknut & Clutch Pedal Position Switch With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With the clutch pedal released, turn in the clutch pedal position switch (B) until it contacts the clutch pedal.
Turn in the clutch pedal position switch an additional 3/4 to 1 turn. Make sure the clutch pedal height didn't change.
While holding the clutch pedal position switch, tighten the locknut (C).
Loosen the clutch interlock switch locknut (A).

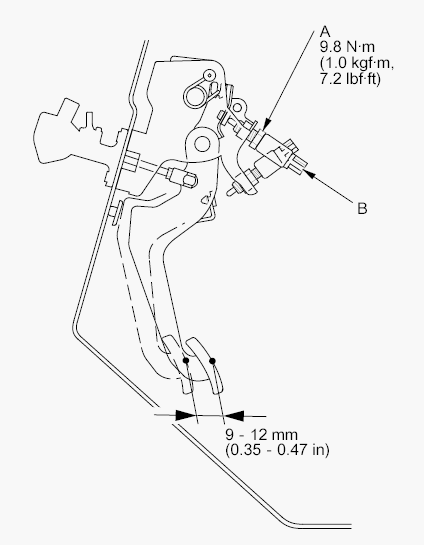

Fig 3: Clutch Interlock Switch & Locknut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fully press the clutch pedal to the floor, then release the clutch pedal 9-12 mm (0.35-0.47 in.) and hold it there.
Adjust the position of the clutch interlock switch (B) so the engine starts with the clutch pedal in this position.
While holding the clutch interlock switch, tighten the locknut.
Check the clutch operation.
Connect the clutch pedal position switch connector and the clutch interlock switch connector, then check the cruise control and clutch interlock operation.
