Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ), and wait for at least 3 minutes.
Remove the cover (A) of the under-hood fuse/relay box, and using the relay puller, carefully remove the relays by prying under the base of the relay (see POWER RELAY TEST )
NOTE: Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start or cause other functions to fail.

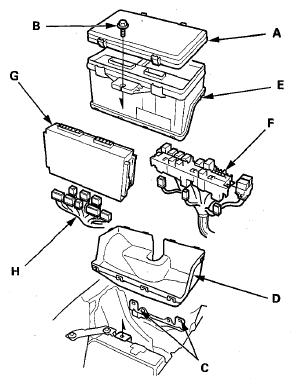

Fig 1: Locating Cover, Bolt, Tabs, Bottom Cover And Under-Hood Fuse/Relay Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt (B) and release the tabs (C), then remove the bottom cover (D) from the under-hood fuse/relay box (E).
Remove the relay block part (F) from the under-hood fuse/relay box.
Remove the relay control module part (G) from the under-hood fuse/relay box, then disconnect the connectors (H) from the relay control module.
