EVAP Canister Vent Shut Valve Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a lift.
Remove the EVAP canister cover (A).

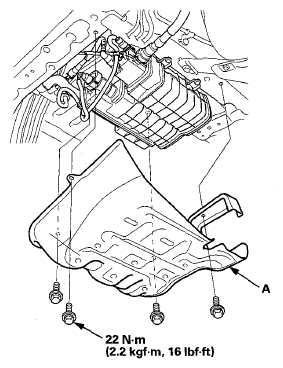

Fig 1: EVAP Canister Cover And Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the EVAP canister vent shut valve 2P connector (A).
Remove the cap (B).

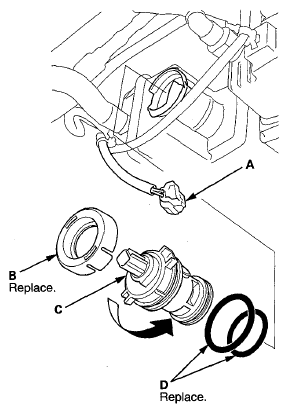

Fig 2: Removing EVAP Canister Vent Shut Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister vent shut valve (C).
Install the parts in the reverse order of removal with new O-rings (D) and a new cap.

NOTE: Do not coat the O-rings with oil.
