EVAP Canister Purge Valve Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the hoses (A) and the EVAP canister purge valve 2P connector (B).

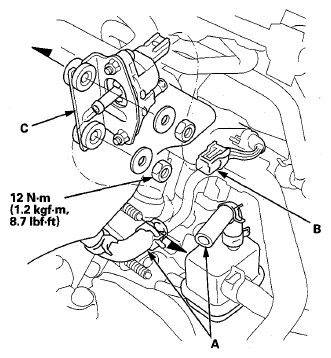

Fig 1: Hoses, EVAP Canister Purge Valve 2P Connector, Bracket And Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister purge valve and the bracket (C).
Remove the EVAP canister purge valve (A) from the bracket (B).

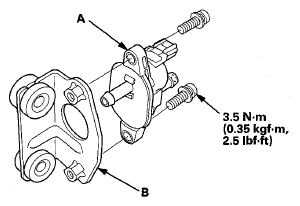

Fig 2: EVAP Canister Purge Valve, Bracket And Mounting Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
