Hood Insulator Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the hood.

Detach the clips with a clip remover. Release the hooks (A), then remove the hood insulator (B).

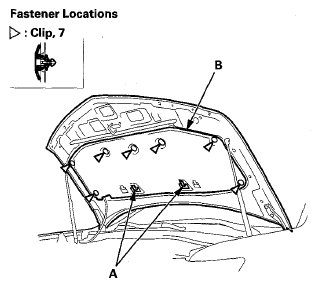

Fig 1: Identifying Hood Insulator, Hooks And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the insulator in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
